Connect to the Host SSH

dangerous

• This document is only applicable for the FLY host machine, other devices are for reference only.
• If you are compiling and burning firmware, please refer to the network connection tutorial instead of the serial port connection tutorial.

• You can use serial or WIFI to connect to the device.
• Please prepare in advance MobaXterm_Personal or other SSH terminal tools.
• Please ensure that the SD card or M2WE has burned the corresponding host system.
• If the host cannot start normally, please remove all external devices such as drivers, limiters, fans, etc.!
• Finally, please connect to SSH via the network for convenient firmware compilation!
• For firmware compilation, please see the tutorial on connecting the host via WIFI or Ethernet.

Serial Connection

Use Serial Port to Connect to the Host SSH

• Use a USB Type-c cable to connect the FLY host machine to the computer.
• For other host machines, please check the connection method yourself!!

FLY-C8

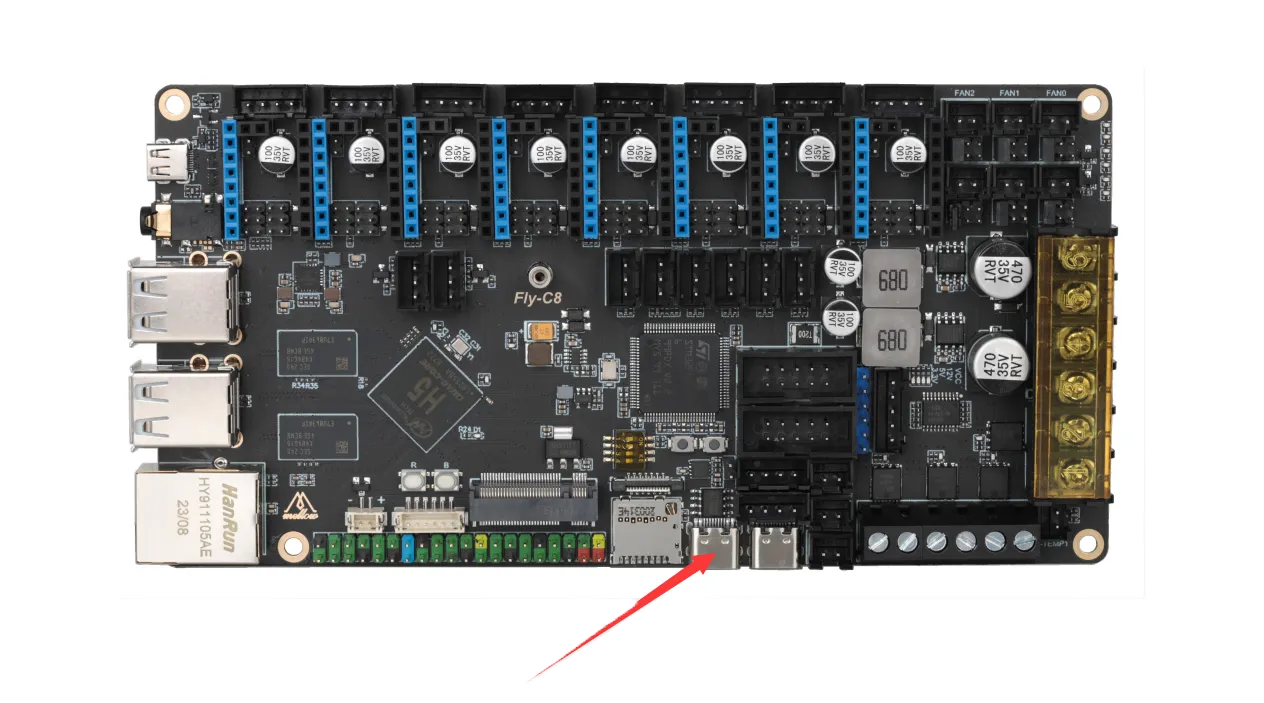

• FLY-C8 port

FLY-Pi v2

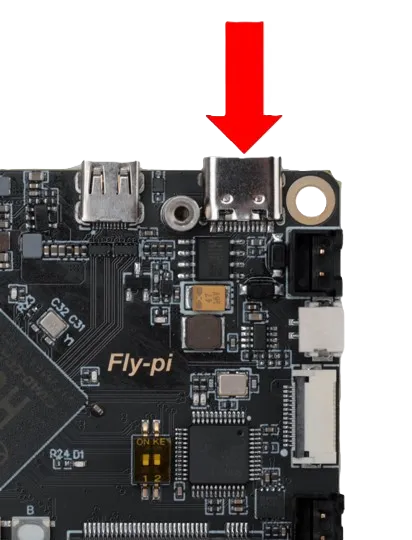

• FLY-Pi v2 port

FLY-Pi(π)

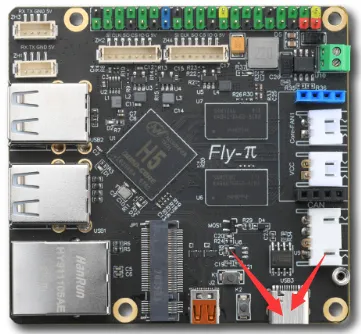

• FLY-Pi port

FLY-Gemini

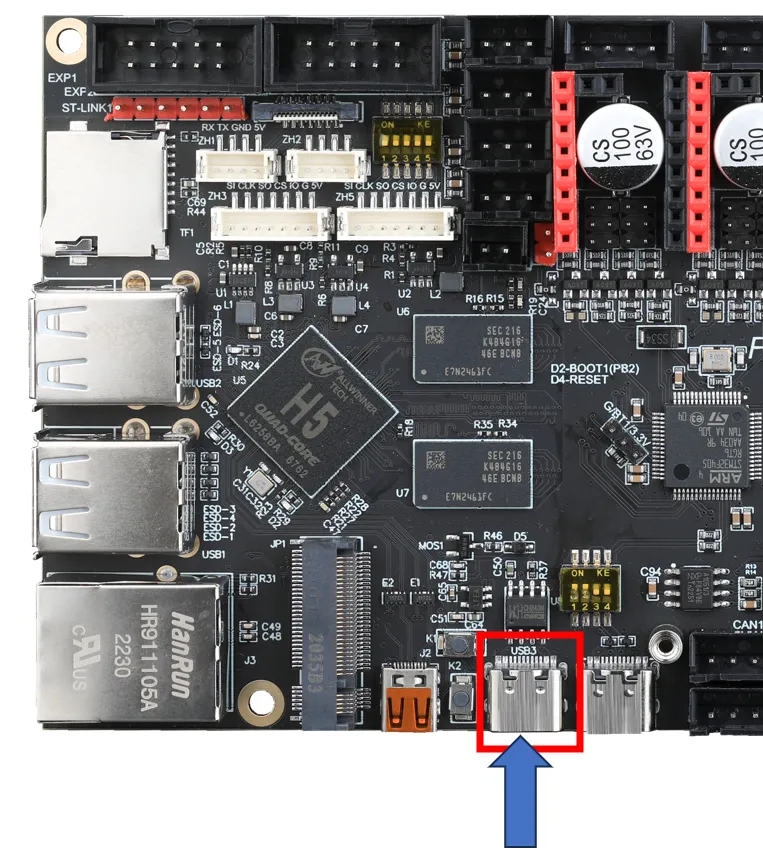

• FLY-Gemini port

FLY-MiniPad

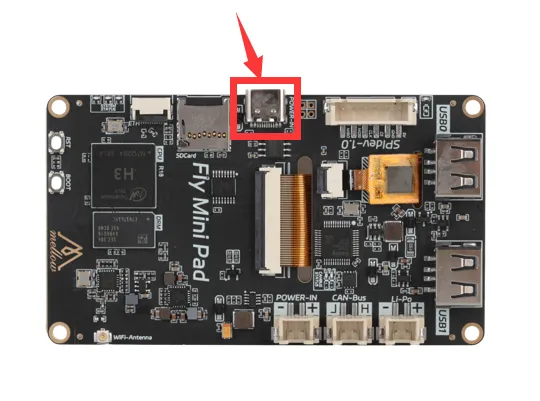

• FLY-MiniPad port

FLY-Pi Lite2

• FLY-Pi Lite2 port

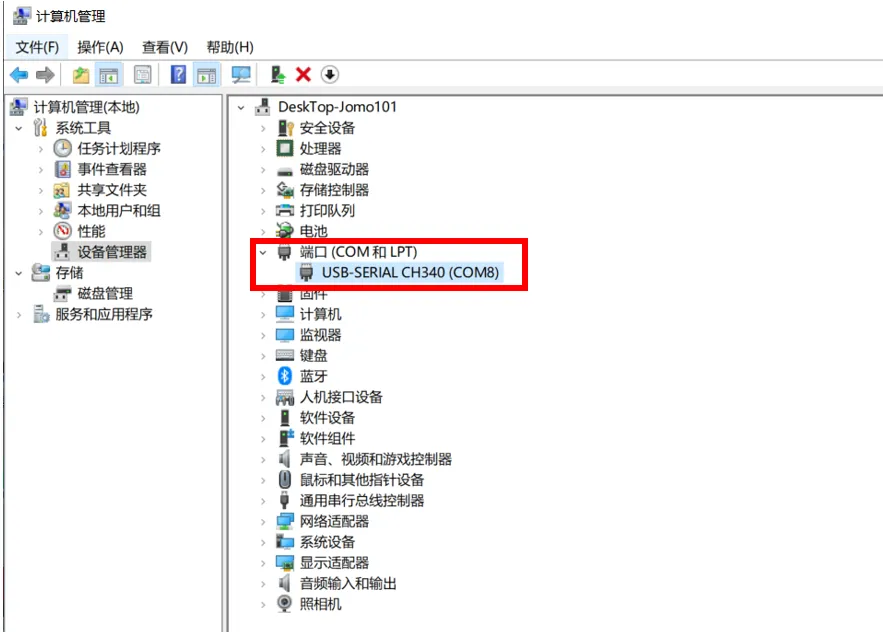

• If the motherboard is connected to the computer properly, open the Device Manager, and you will see the CH340 port.

• Open MobaXterm, and set it up as follows, selecting the port you saw in the Device Manager.

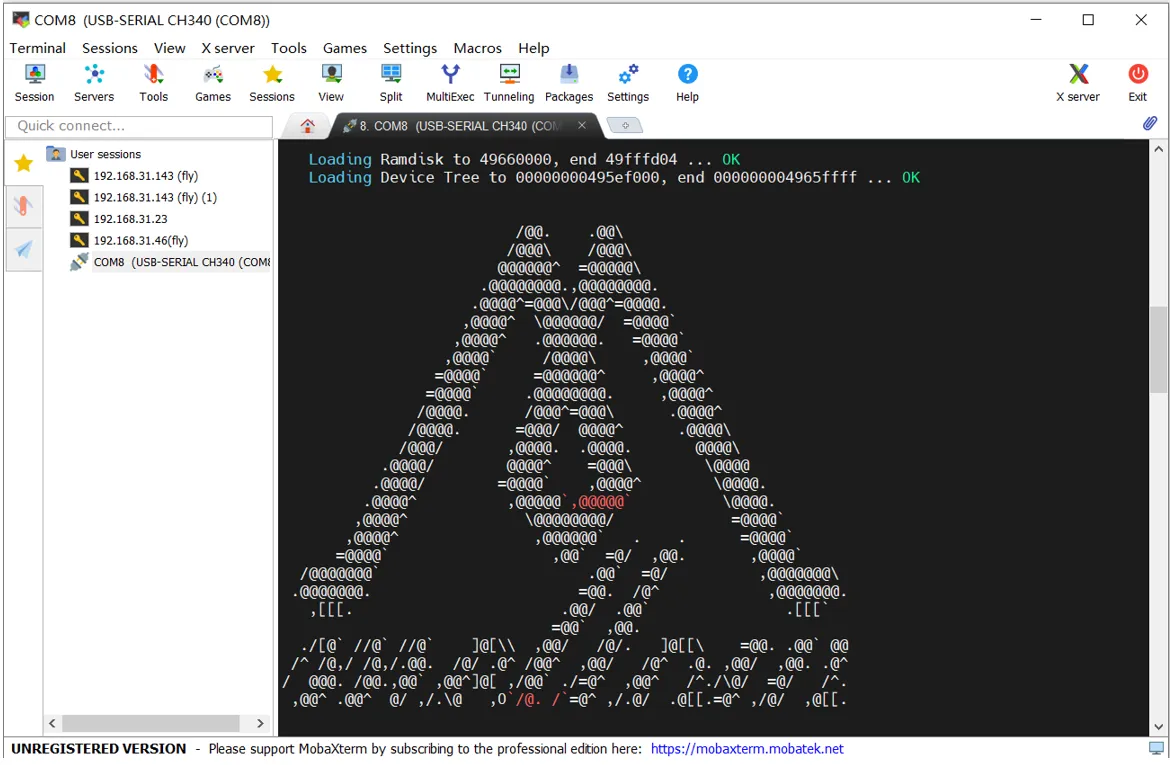

• If everything is normal, you should see the startup screen.

• Wait a moment, and if you see this screen, it means the system has started.

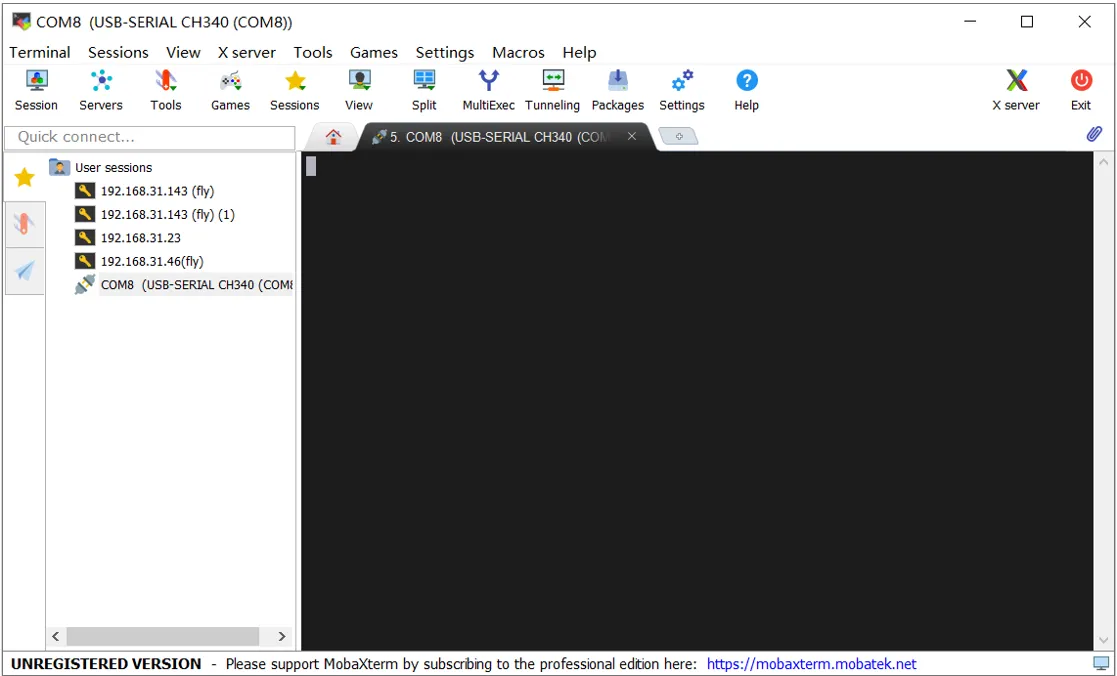

If after a few minutes, the screen still shows nothing, press the Enter key a few times.

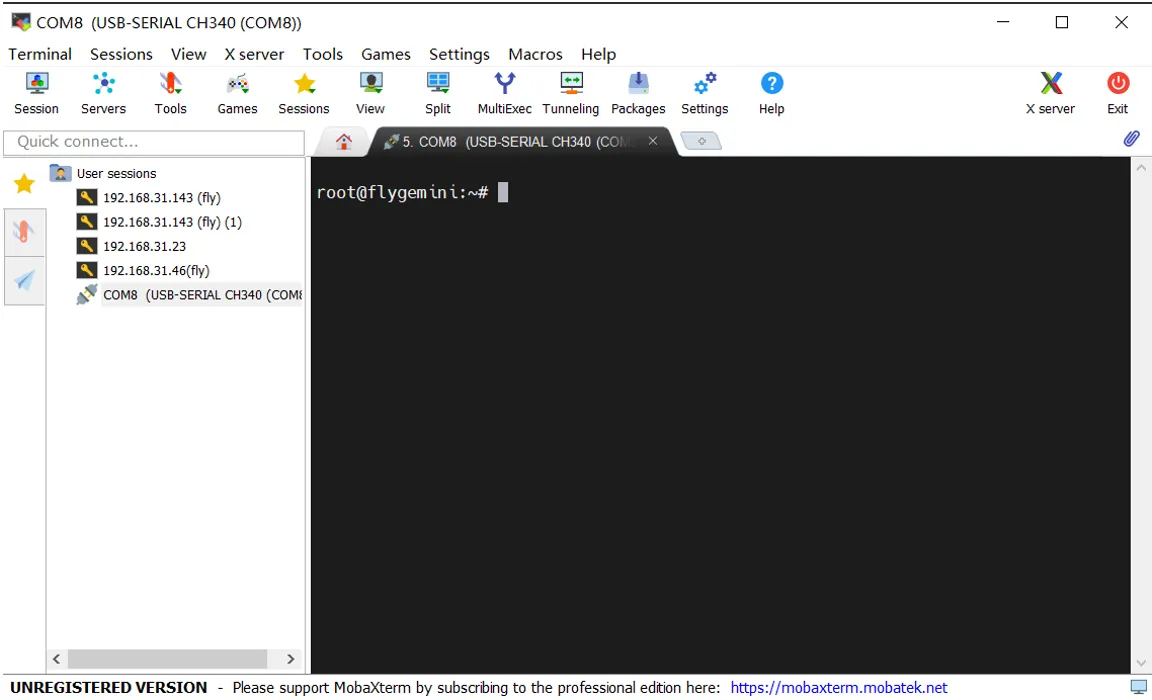

After pressing Enter, you will see the following content.

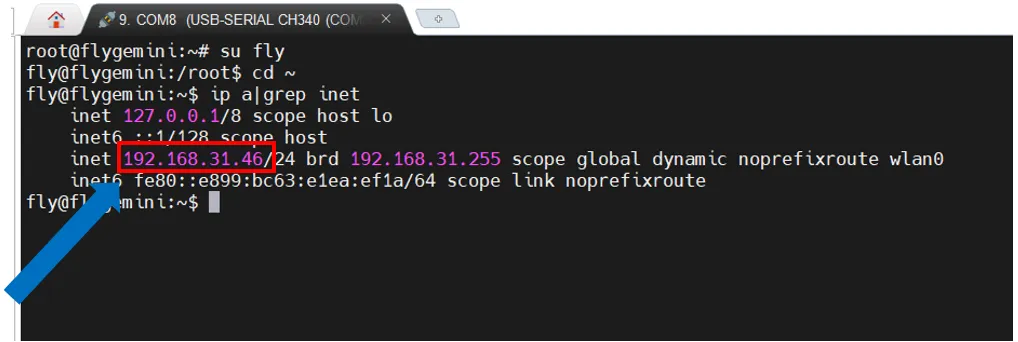

• If you need to check the IP address, type ip a | grep inet in the SSH terminal and press Enter. Find the IP address that matches your router's segment to access it.

Network Connection

Use Network IP to Connect to the Host SSH

• Ensure the system has started normally.
• Log in to the router backend to which the host is connected unless you know the IP address of the host.
• Ensure you know the username and password of the host. The FLY system defaults to username fly and password mellow.
• If the motherboard has already started and is connected to the network, you can use the following method to connect to SSH.

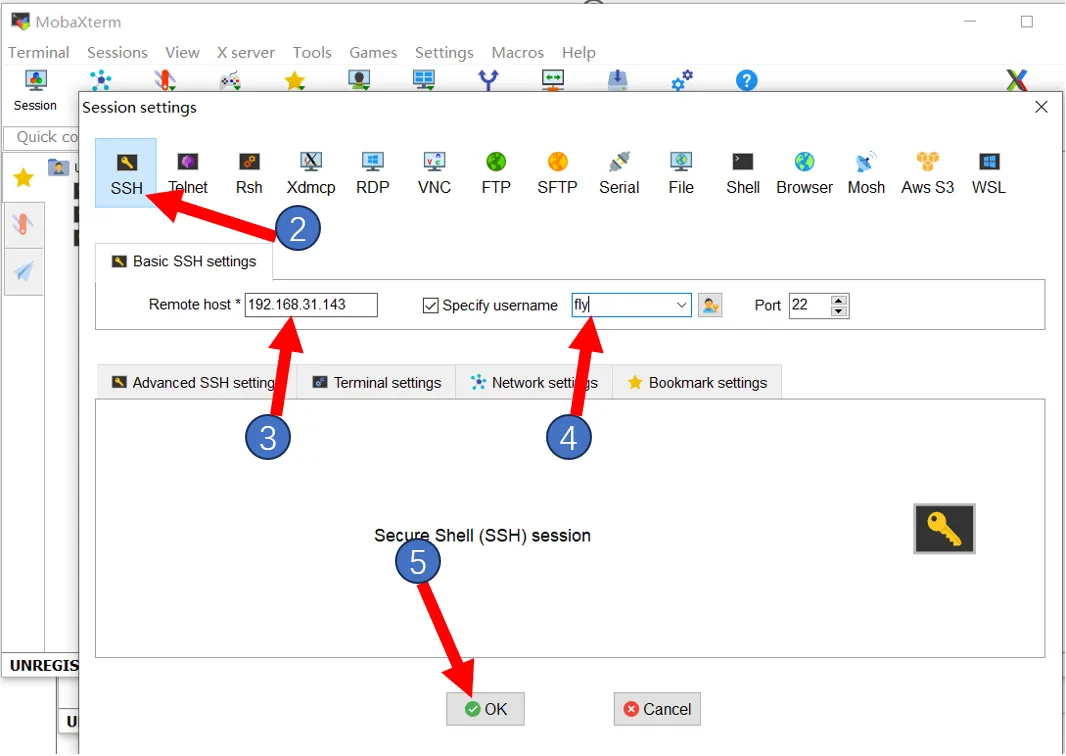

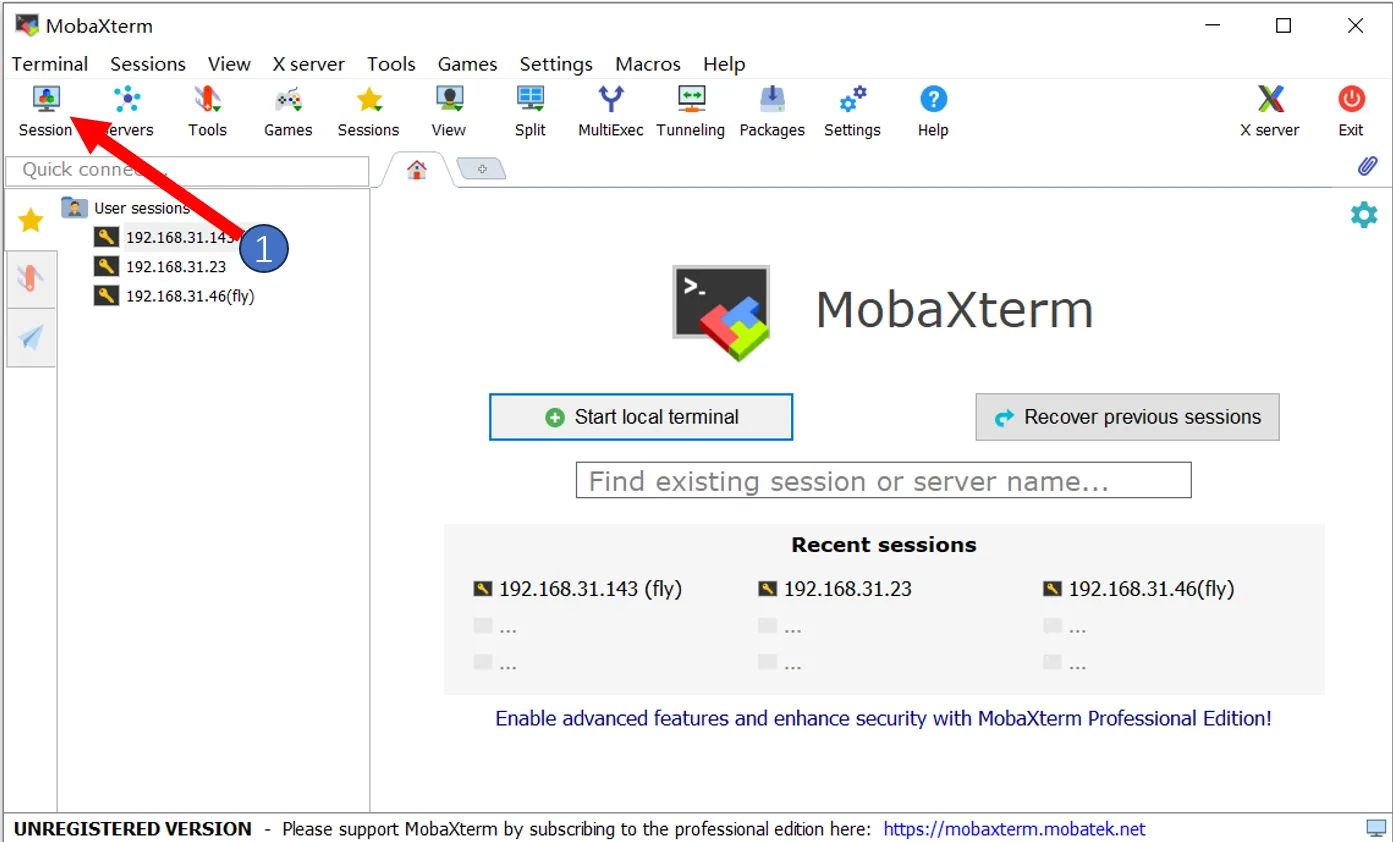

• Open MobaXterm and set it up as follows, entering the IP address you viewed previously, or you can check it in the router backend.

Note: In step 4, enter the username of the host.

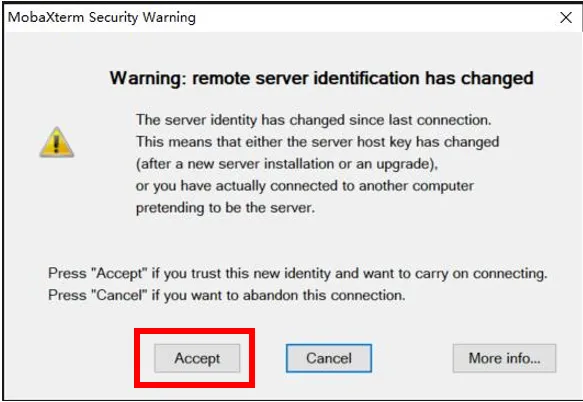

• When you first connect, a window will pop up; click Accept.

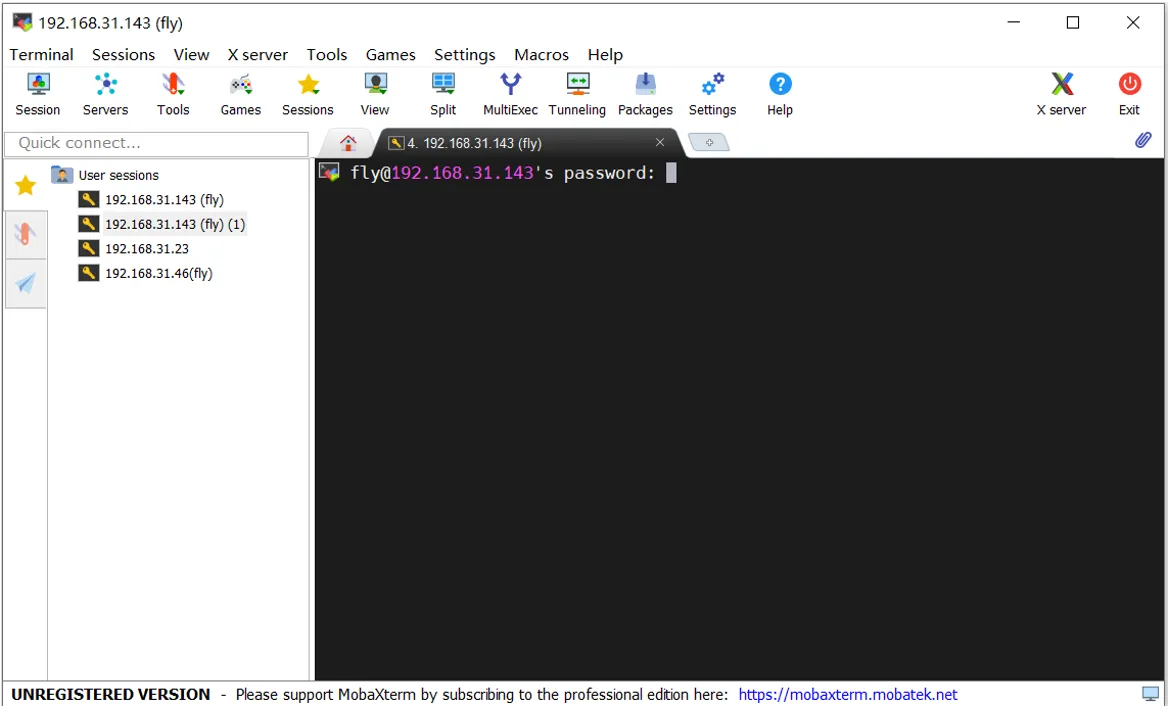

• It will prompt you to enter the password. After typing the host password and pressing Enter,

Note: Here, the entered password is not visible; just press Enter after typing it.

The default username for the FLY system is: fly, and the password is: mellow.

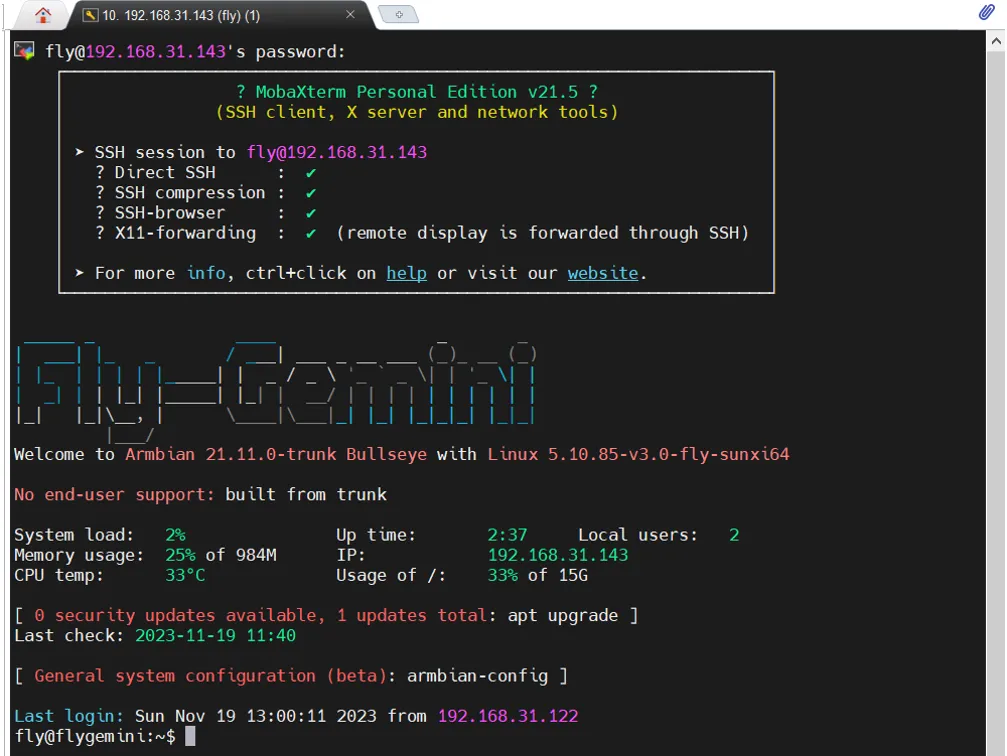

• Login successful.

---
