tip
- BDsensor-m can be directly connected to the motherboard's EXP1 and BL-TOUCH* interface
Notice
- Please ensure the wiring order is correct, otherwise, it may damage the device

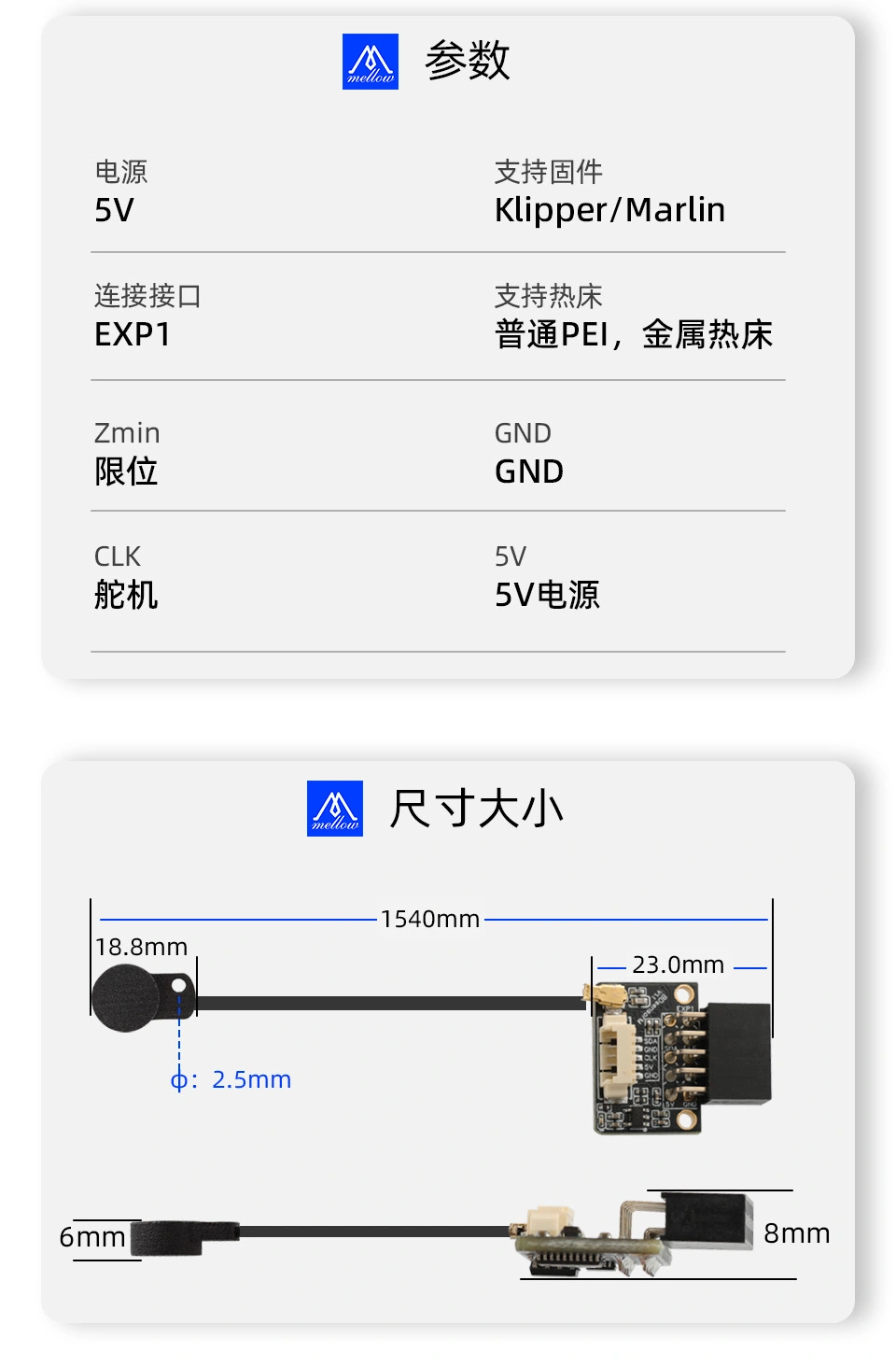

BDsensor-m Dimensions

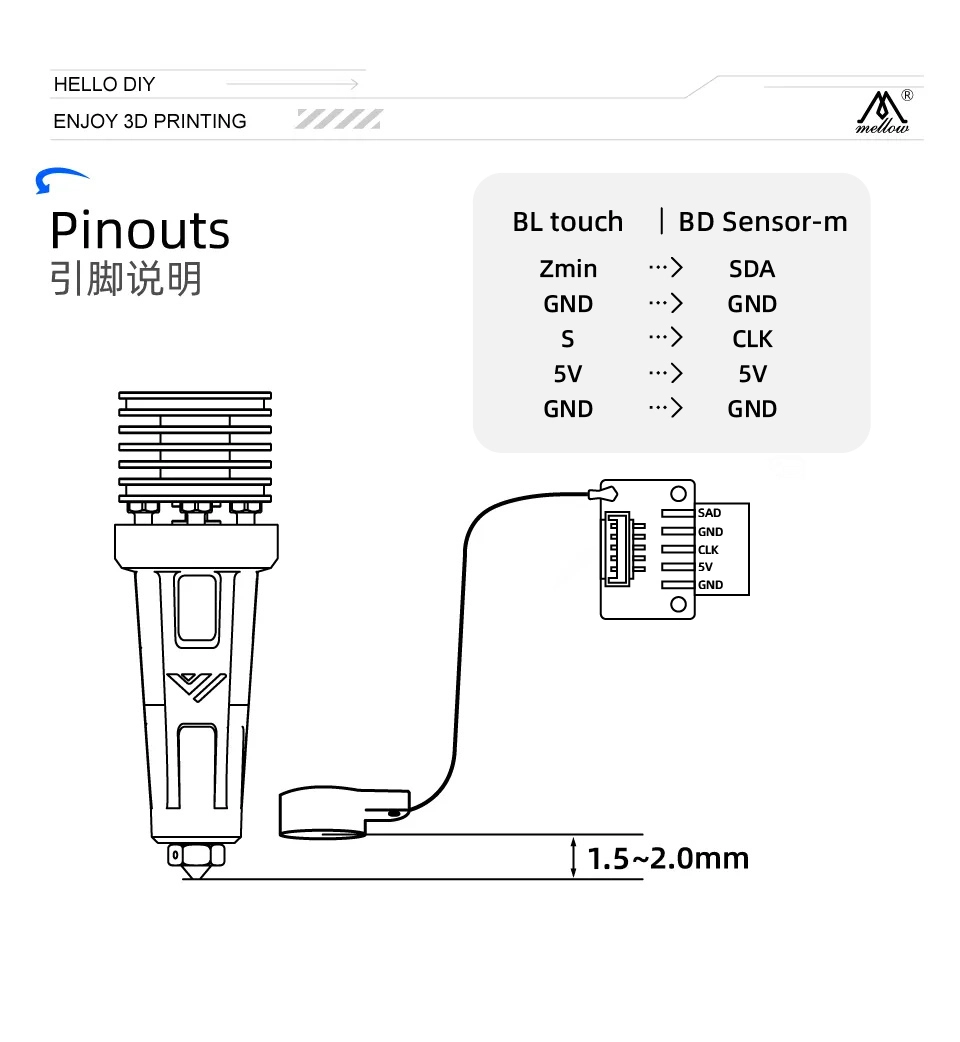

Wiring Distribution
| BDsensor-m | BL-TOUCH | Function Introduction |
|---|---|---|
| SDA | Zmin | Limit Switch |
| GND | GND | GND |
| S | CLK | Servo Motor |
| 5V | 5V | 5V Power Supply |
| GND | GND | GND |

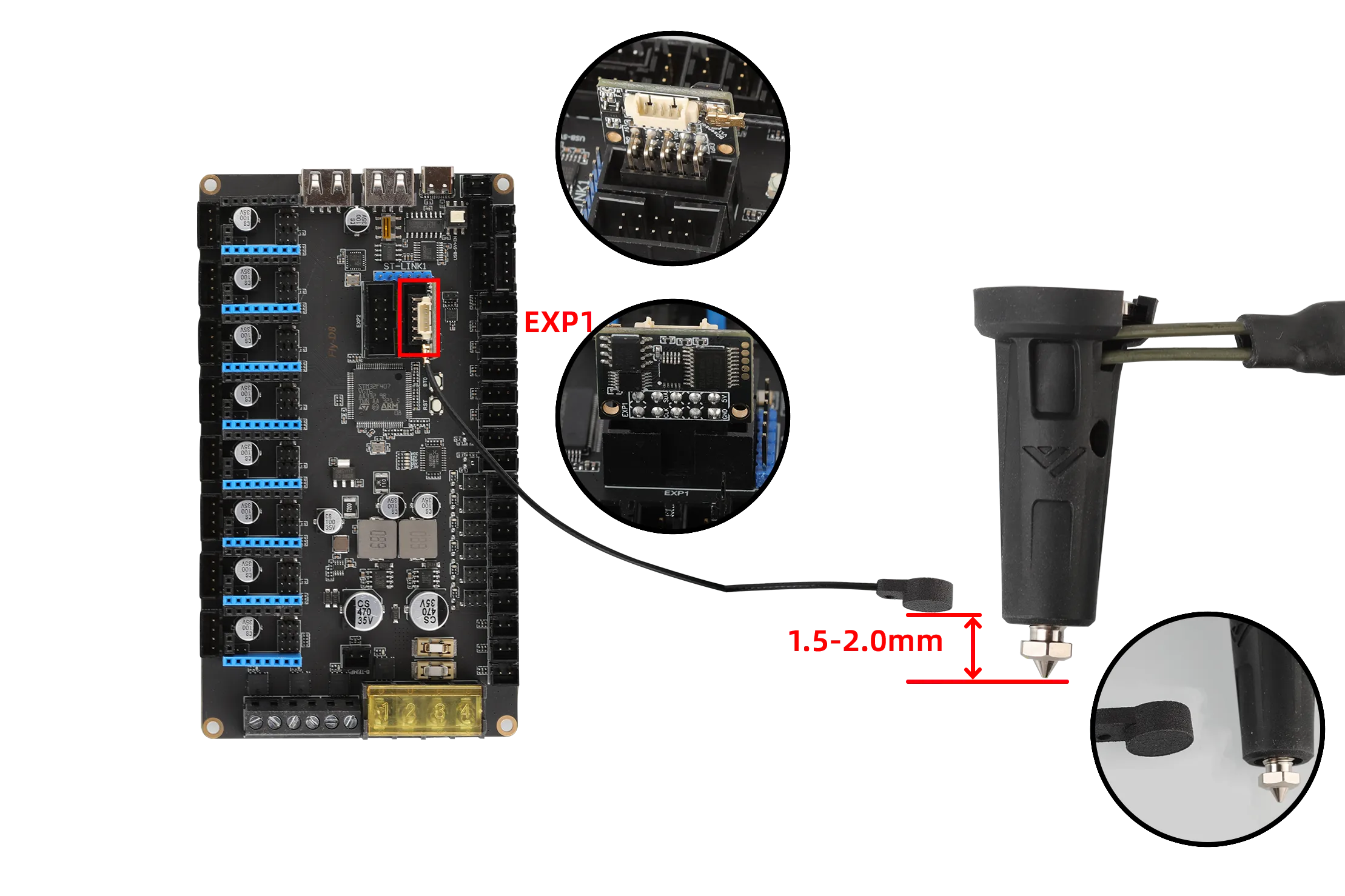

Installation Diagram
